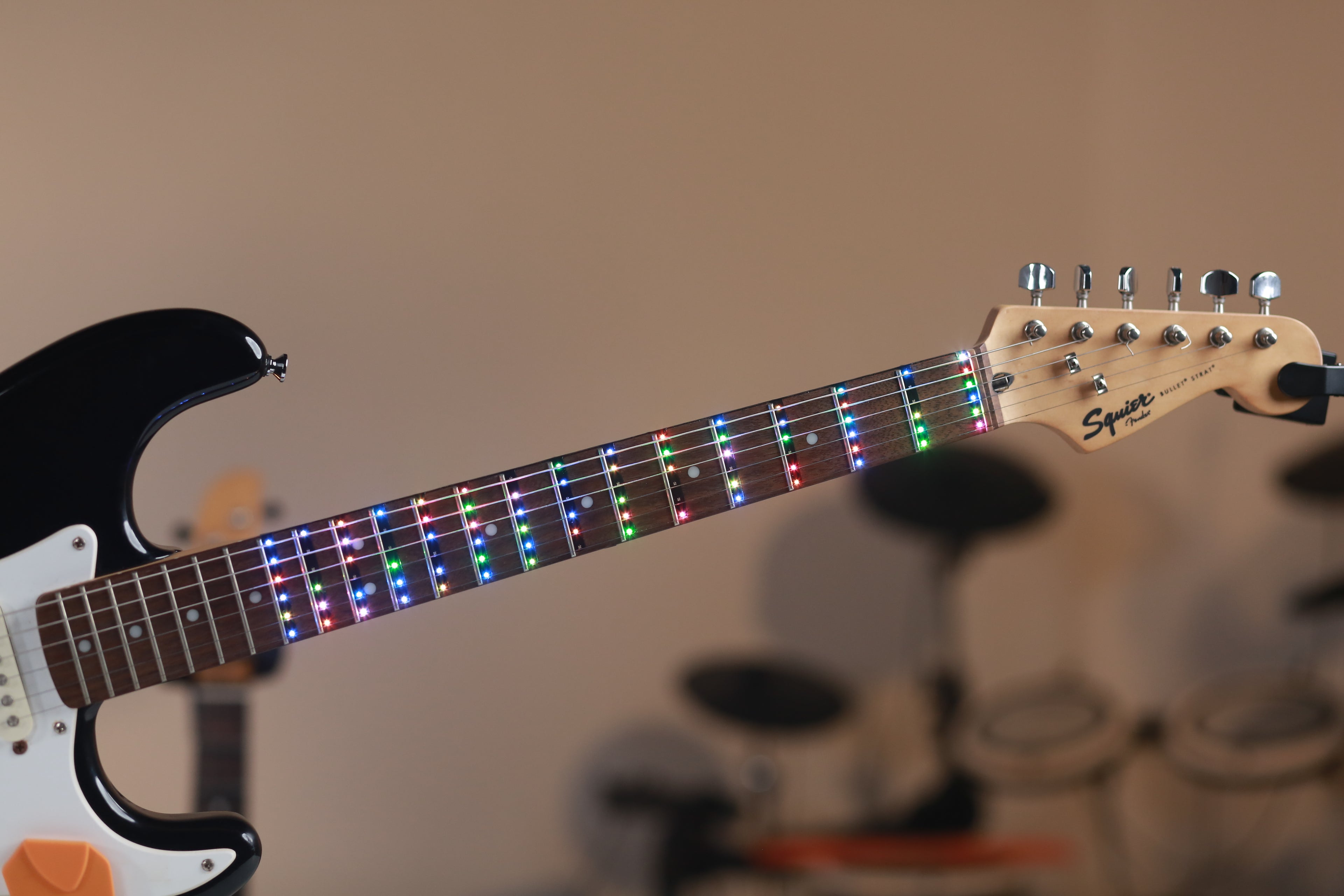

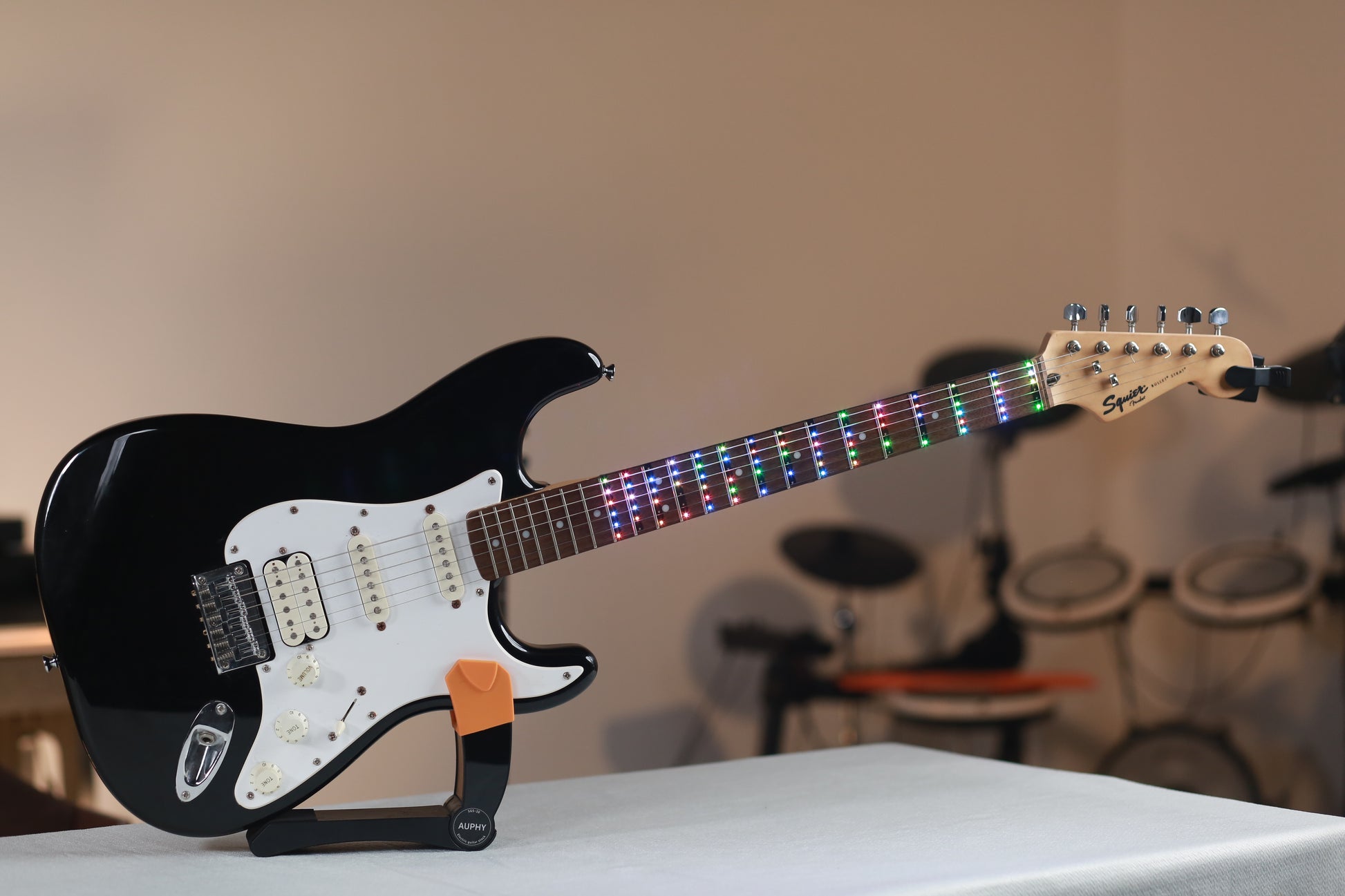

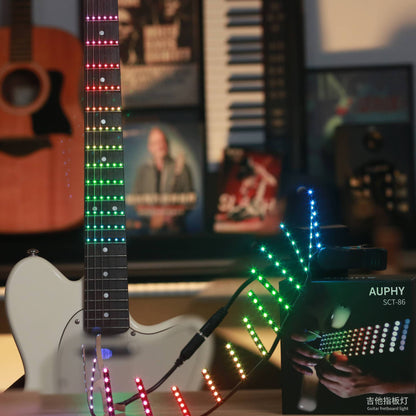

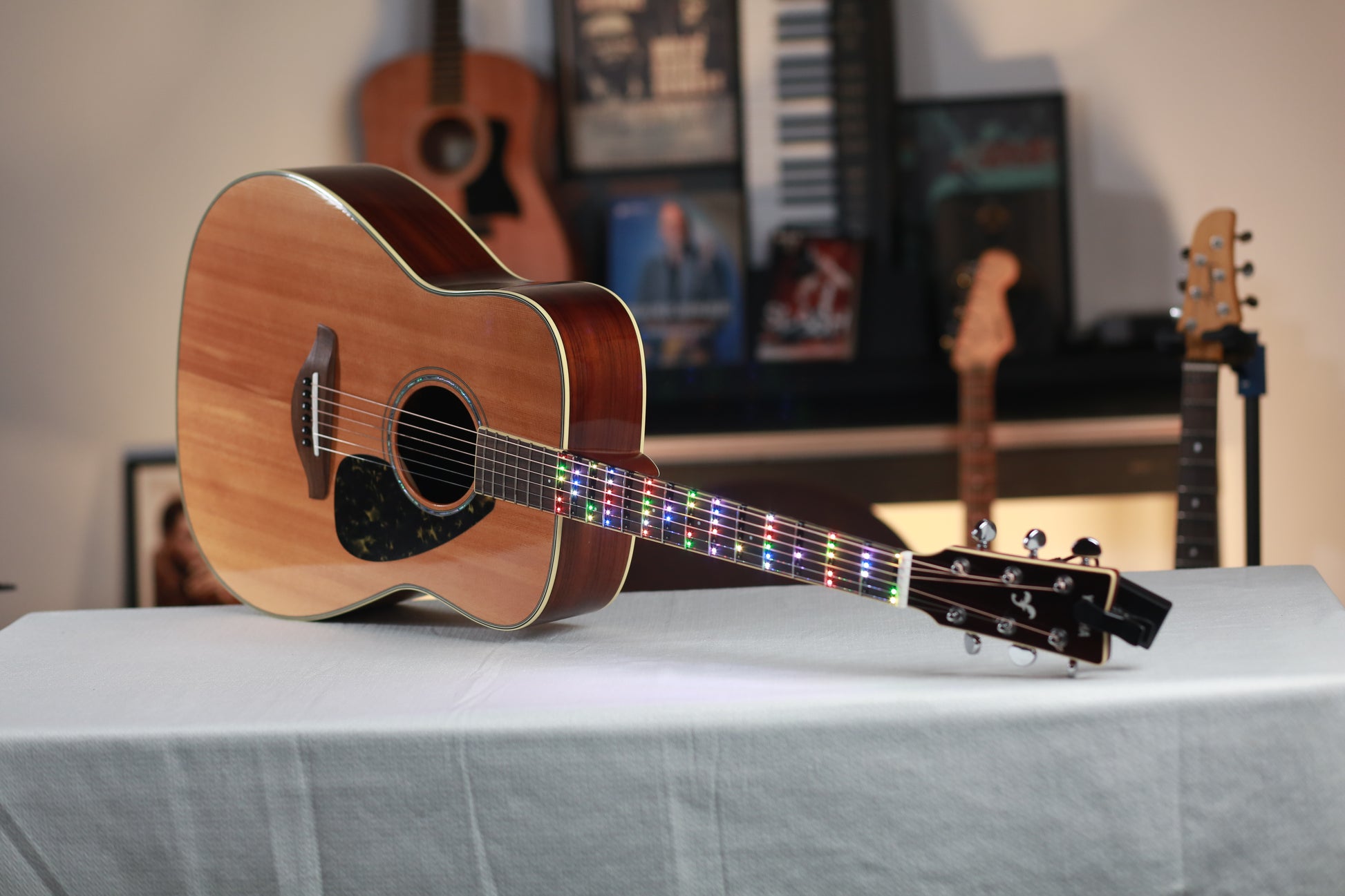

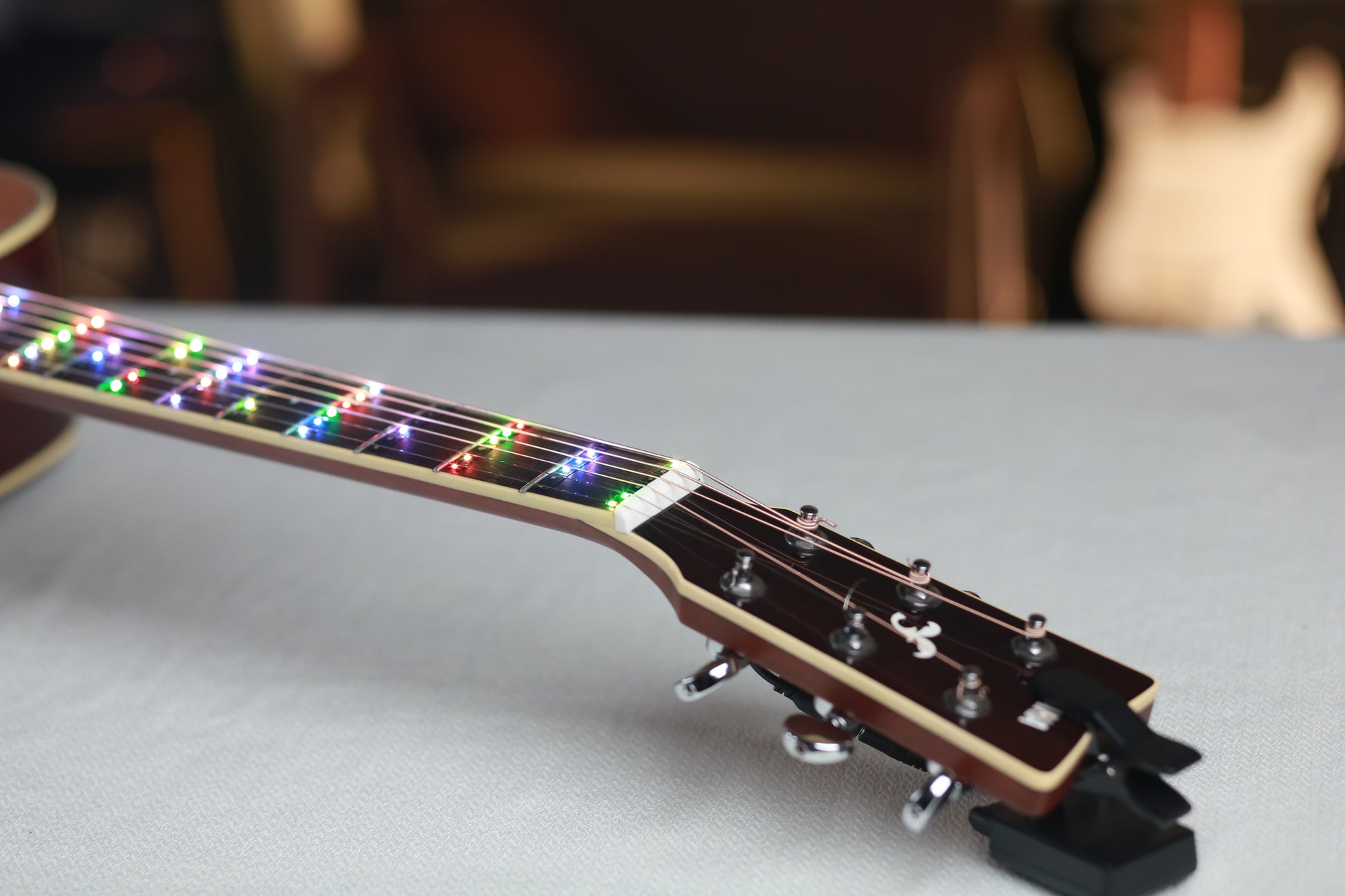

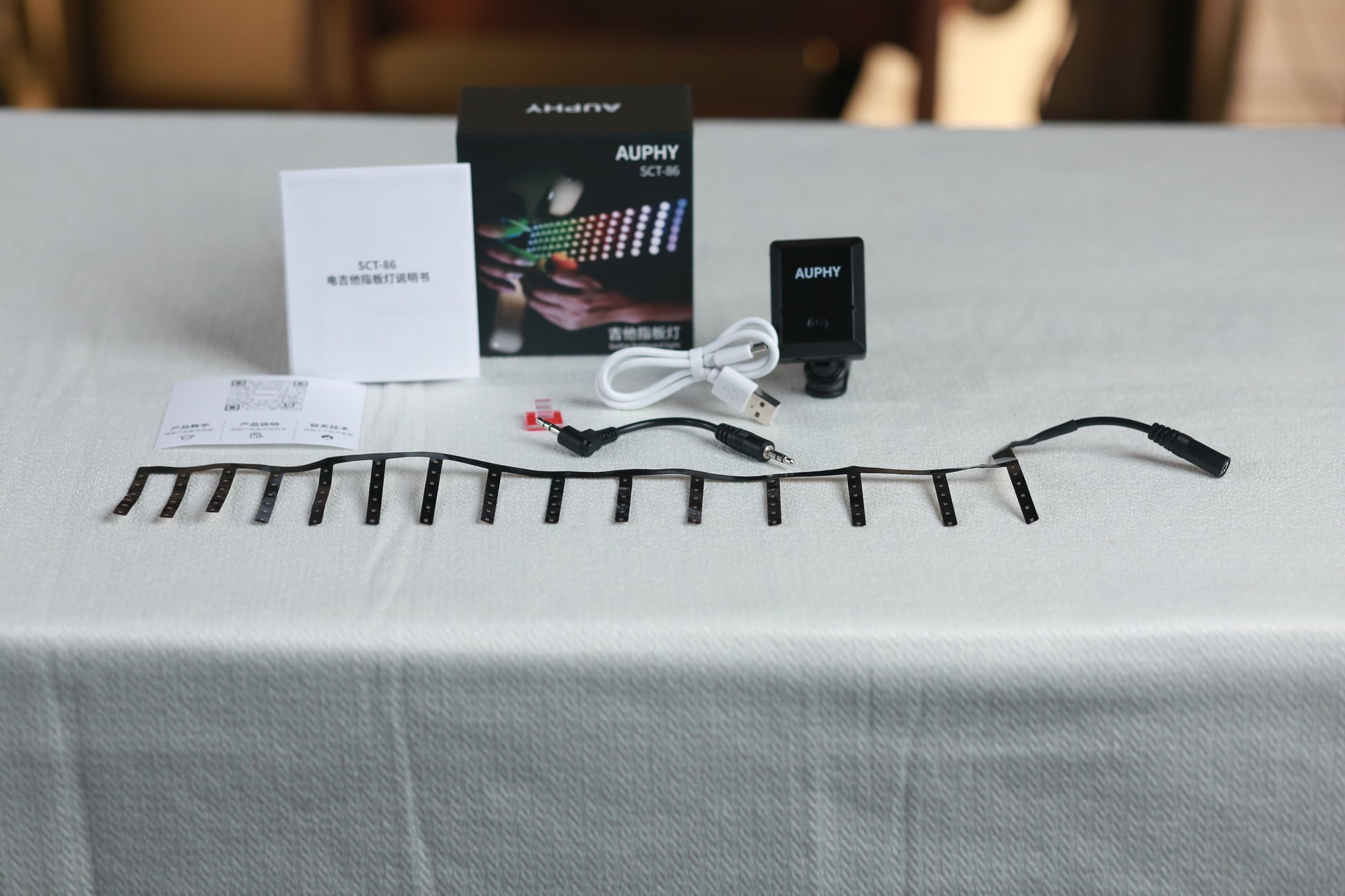

AUPHY SCT-86 Guitar fretboard light

AUPHY SCT-86 Guitar fretboard light

$59.00 USD
$99.00 USD $59.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Scale length

Two Sizes to Choose:

24.75" scale length - fits most Epiphone, Gibson, etc. This is the universal version and will fit any full size guitar with a scale length 24.6" - 25.3".

25.5" scale length - fits most Fender, Ibanez, Jackson, Schecter, Yamaha, and most acoustic guitars. This will fit guitars with scale lengths very close to 25.5"(including slightly less or more from 25.3" to 25.6").

Product Specifications:

LED Specifications

  • Size: 1.1mm × 1.1mm × 0.35mm
  • Quantity: 90 LEDs (6 strings × 15 frets)
  • Type: RGB LED with independent IC
  • Lifespan: 2 years
  • Colors: 7 dedicated colors for musical scales

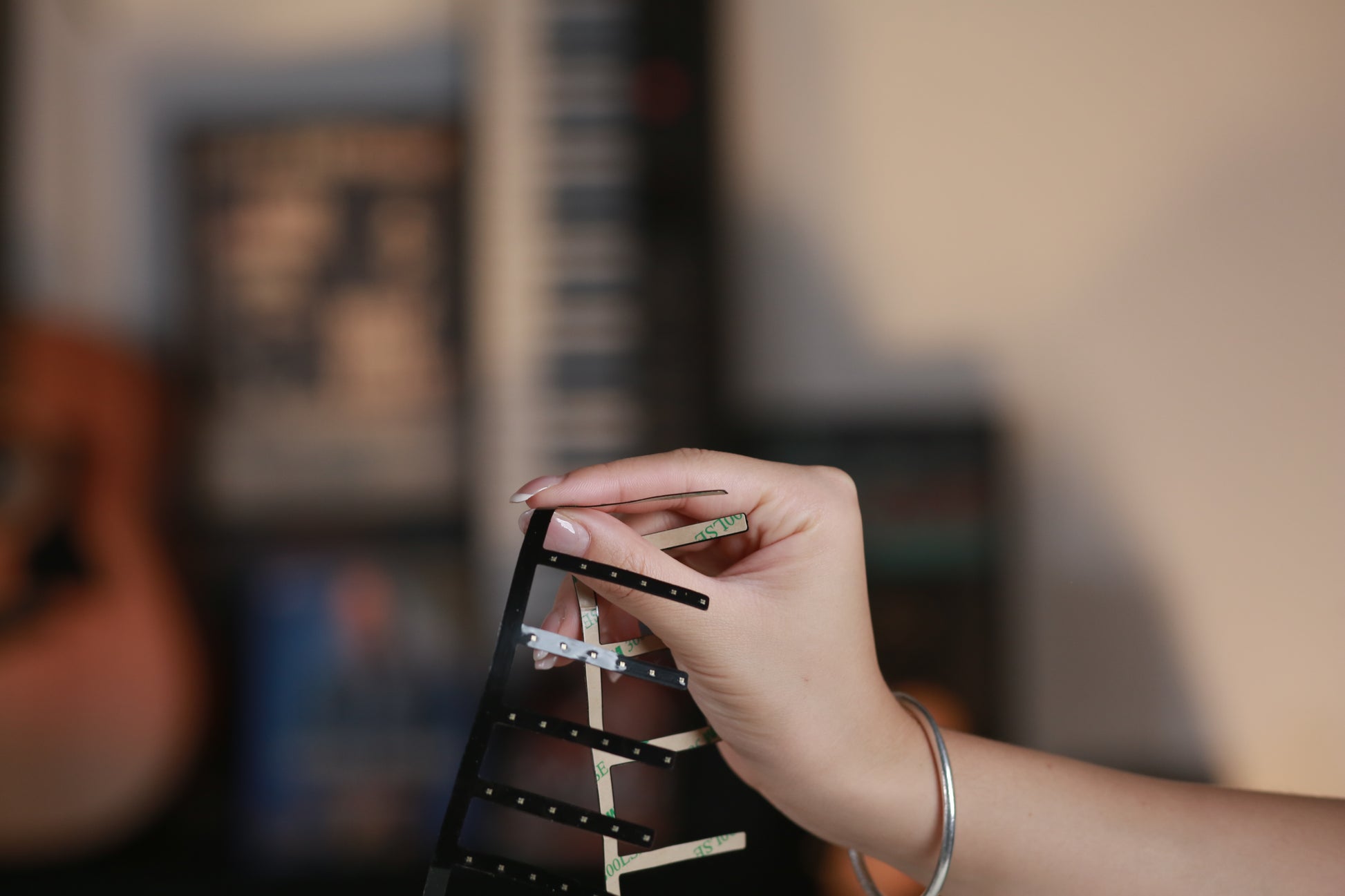

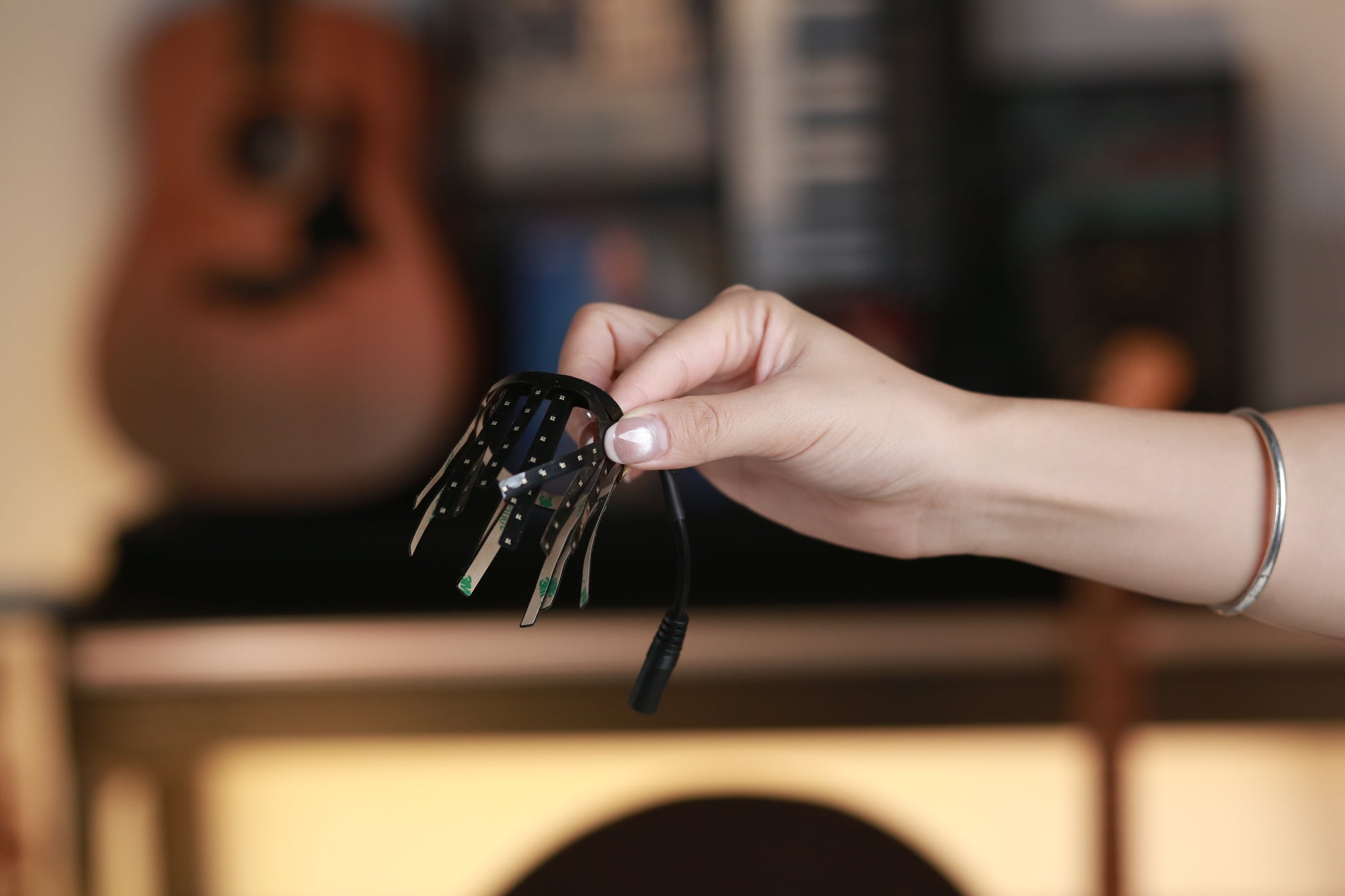

Structural Design

  • Material: Rolled copper (red copper)
  • Surface treatment: Silicone spray coating

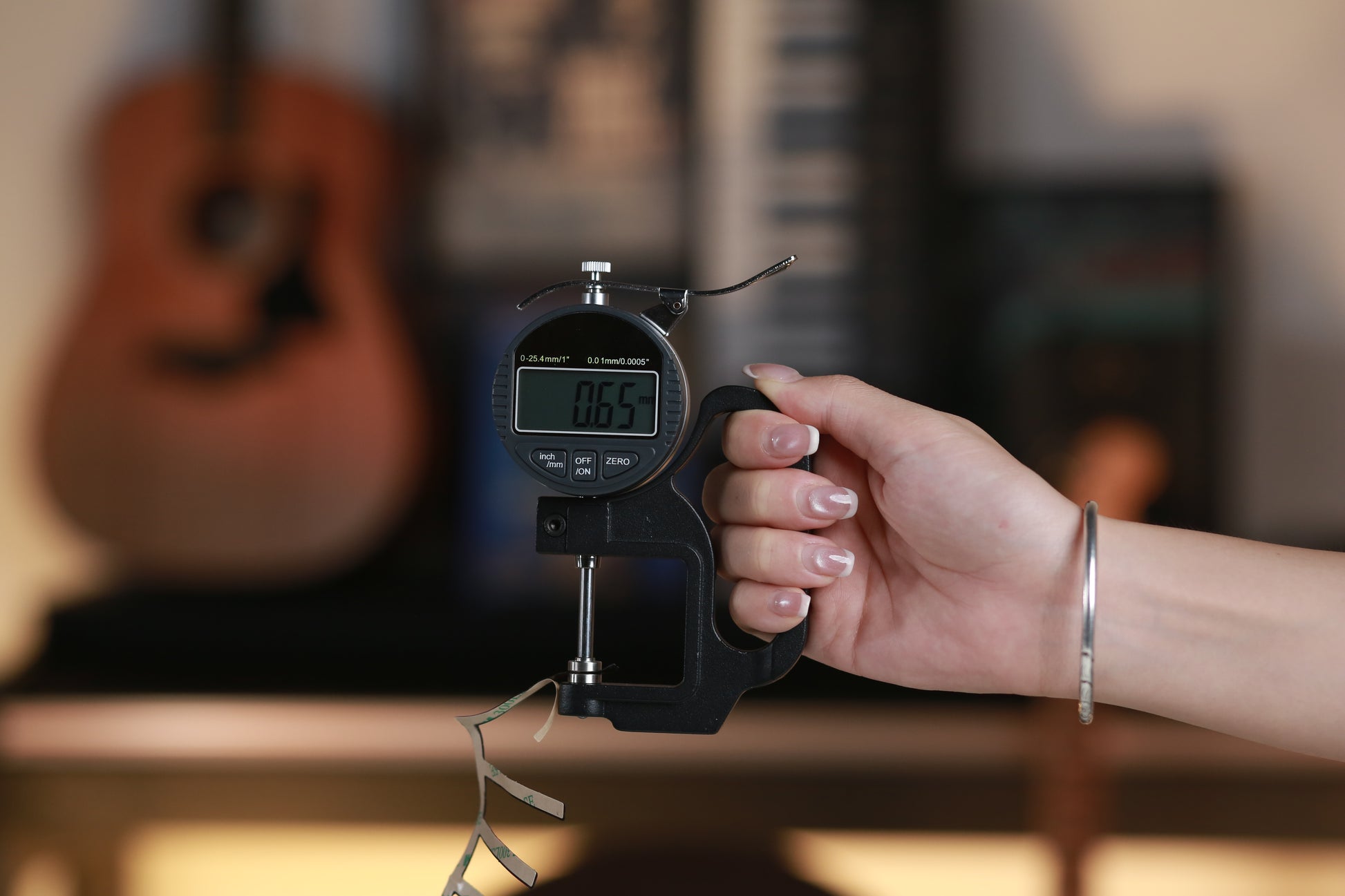

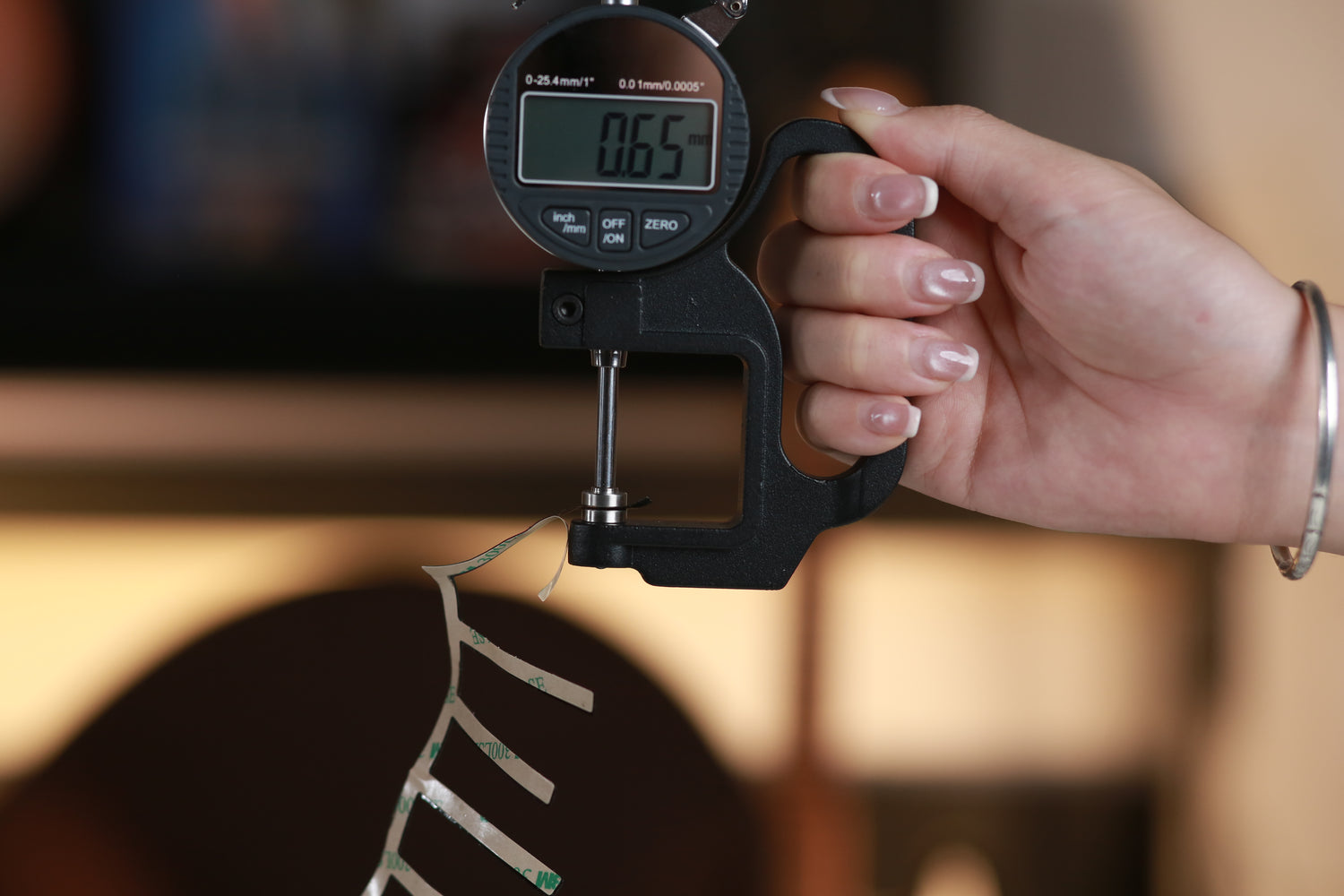

  • Thickness: 0.6mm
  • Size: 25.5"(648mm) / 24.75"(628mm)
  • Adhesive: 3M high-viscosity adhesive
  • Color: Black

Power System

  • Battery: 900Am rechargeable aluminum battery
  • Battery life: Approximately 4 hours when fully charged

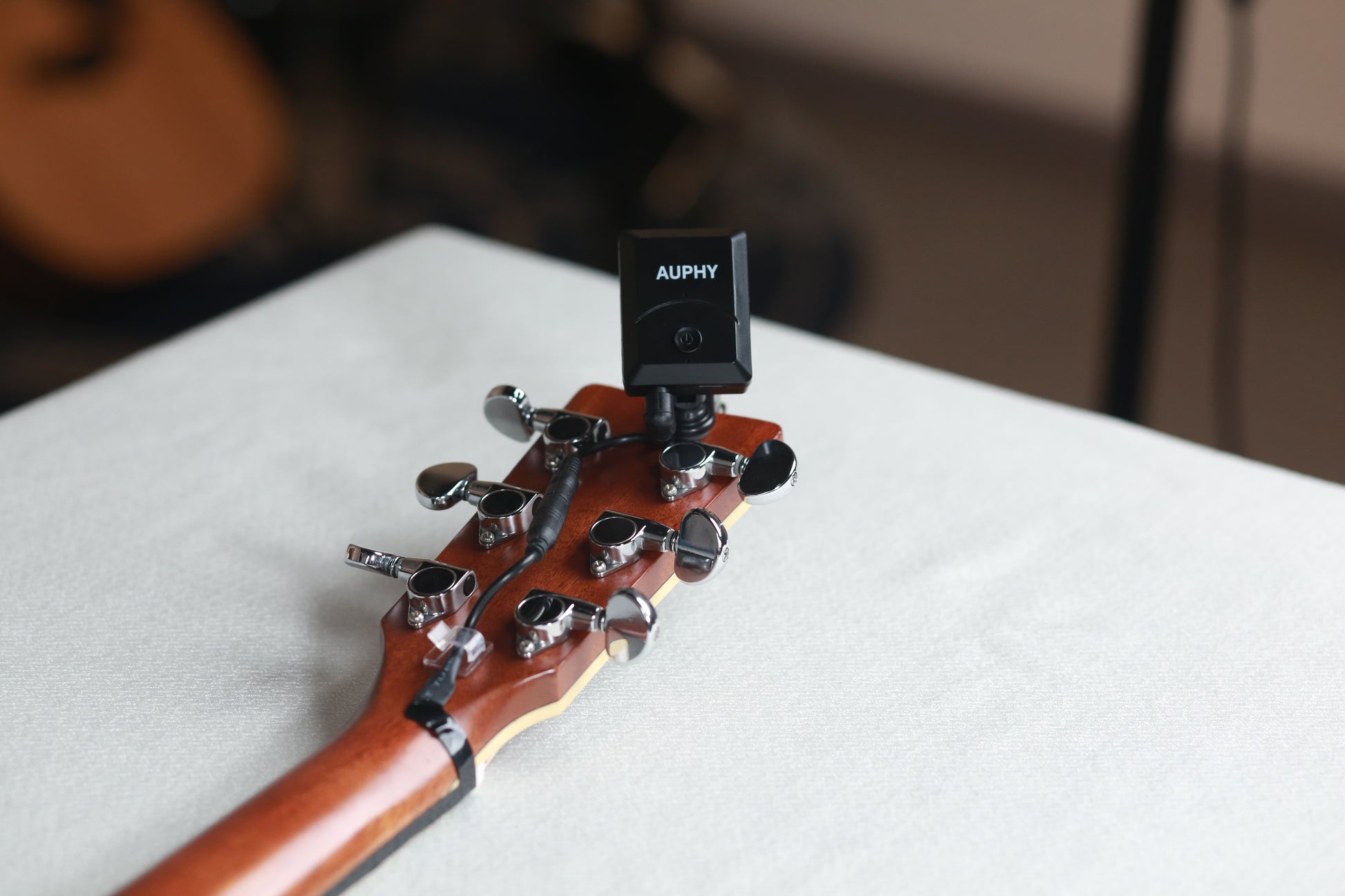

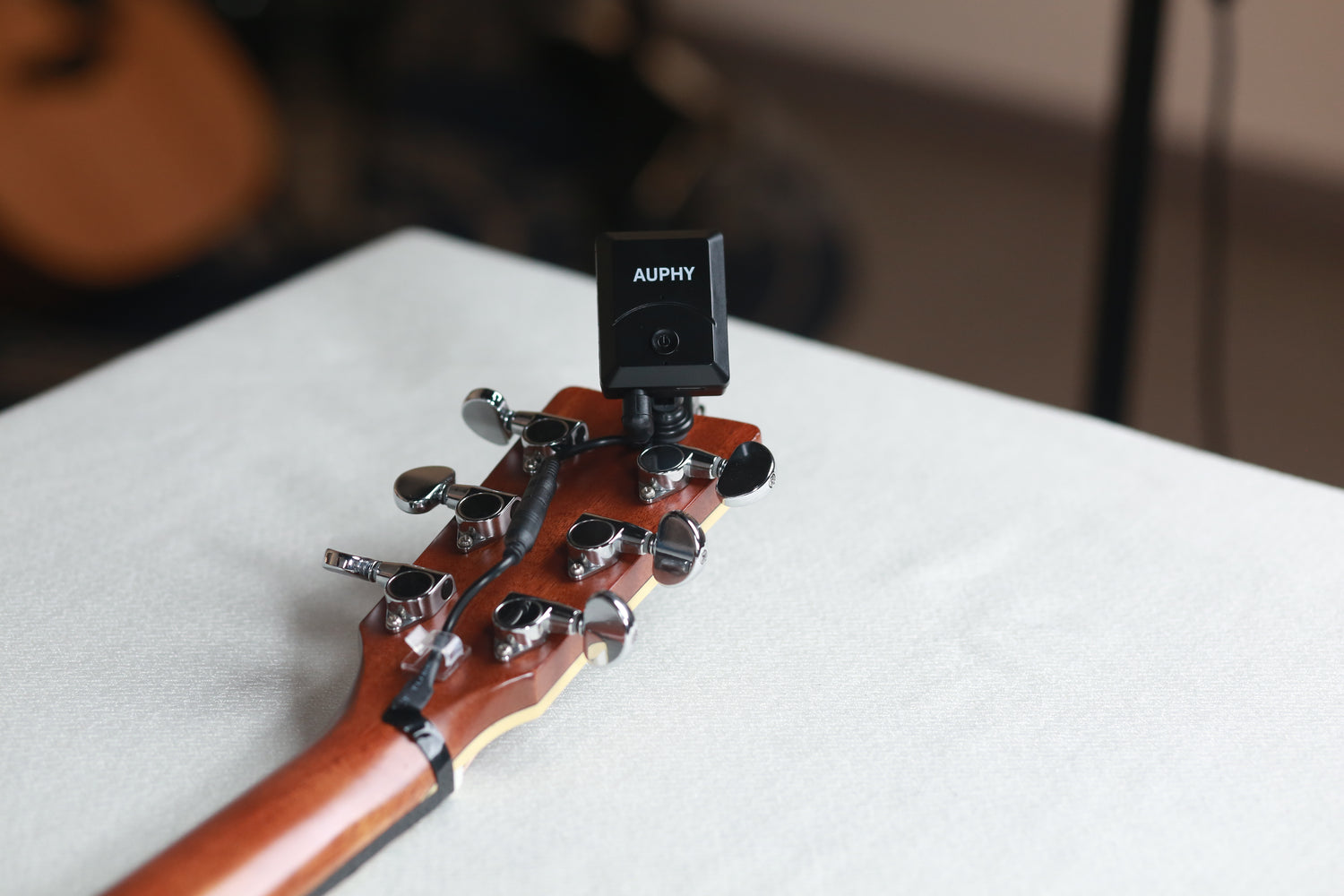

  • Controller: Headstock clip design

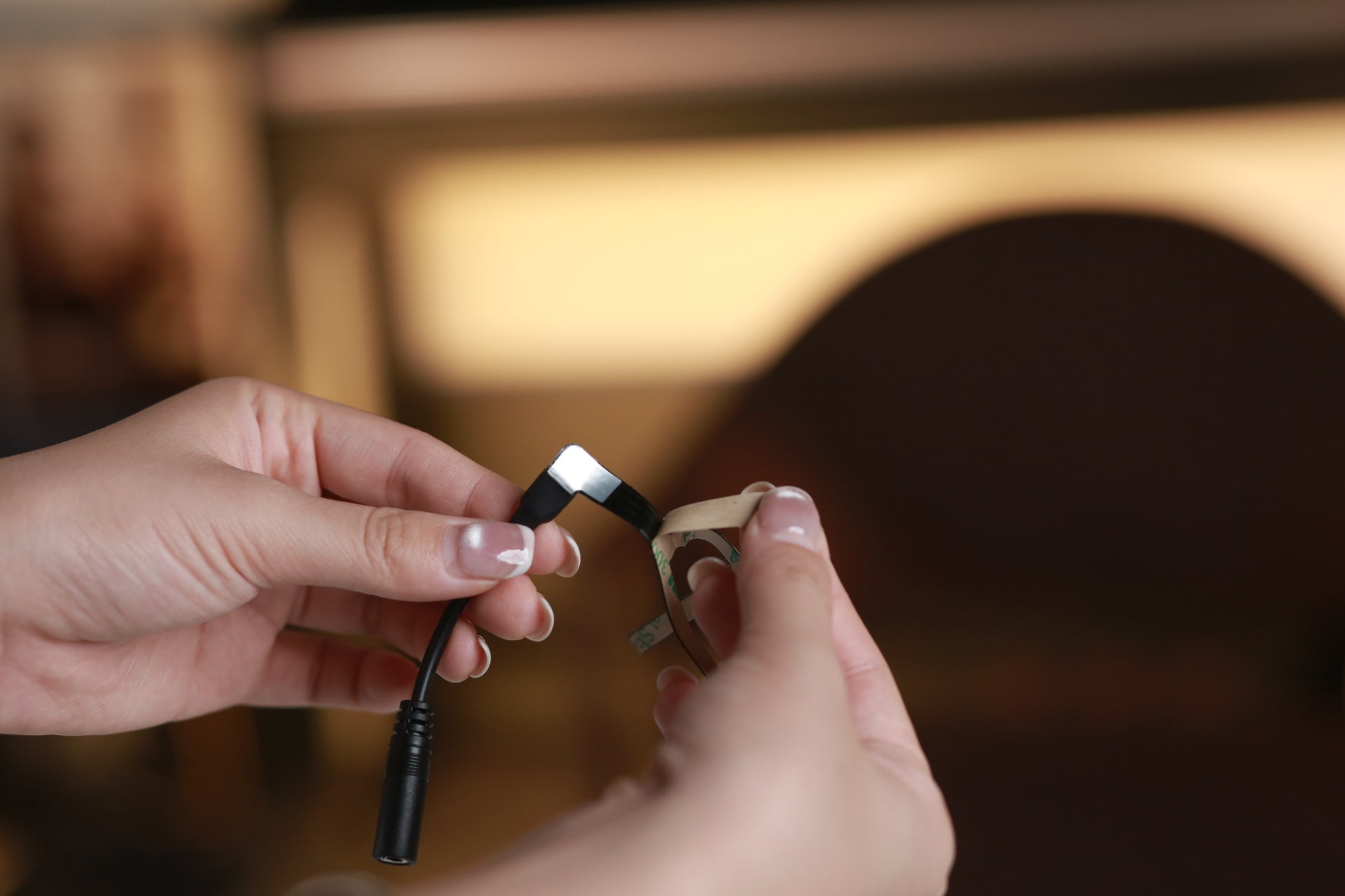

  • Connection cable: 70mm dedicated cable
Ver todos los detalles

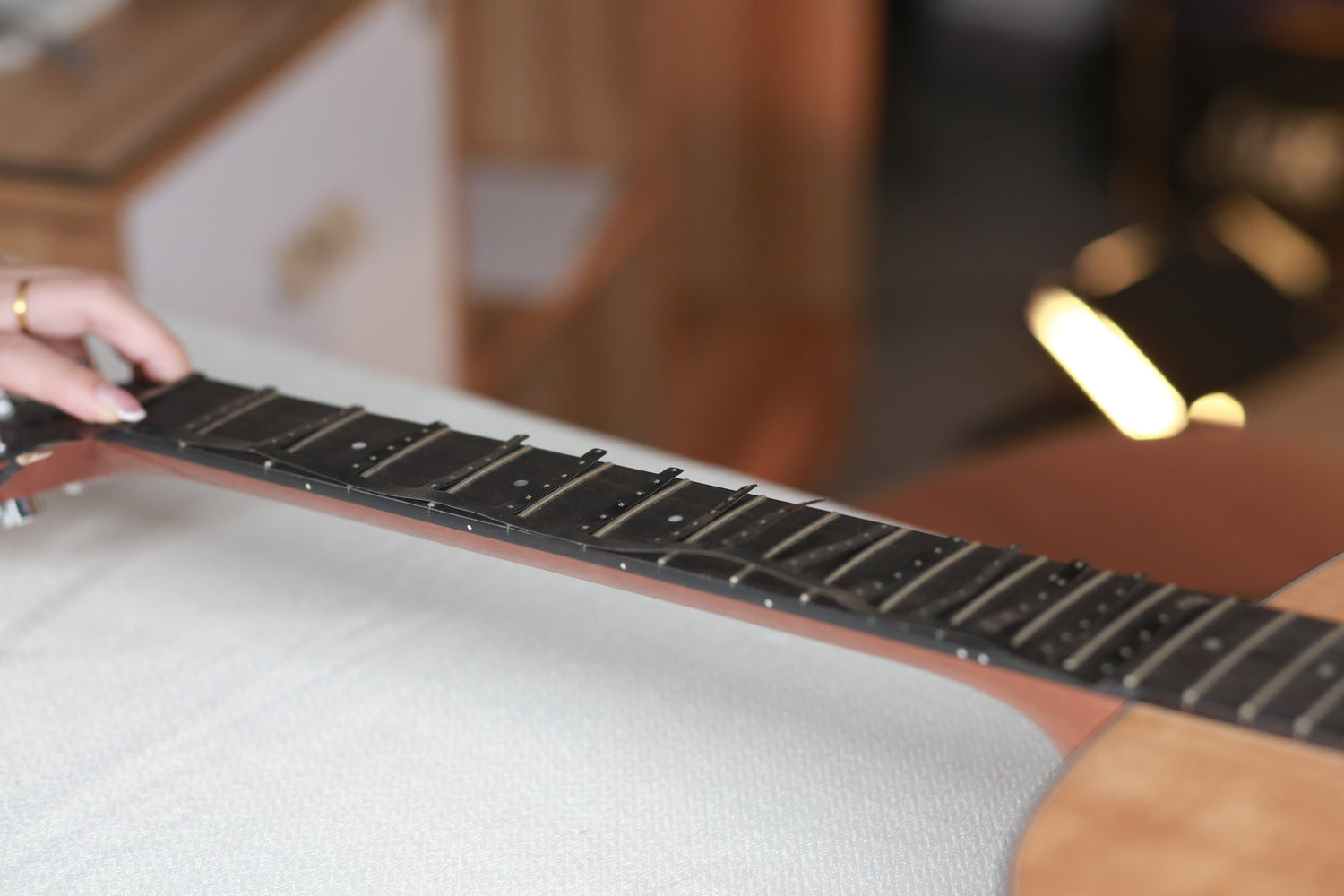

Installation Video

AUPHY SCT-86 Guitar fretboard light

Operation Instructions

Power On/Off

Press and hold the controller button for 3 seconds to turn on/off. It defaults to Stage Mode when powered on

Mode Switching

Double-click the controller button to switch between Stage Mode and Learning Mode

Stage Mode Operation

In Stage Mode, press the button shortly to cycle through 6 lighting effects:

  • Static Full Brightness Mode
  • Breathing Light Mode
  • Colorful Mode
  • Strings Mode
  • Navigation Mode
  • Rhythm Mode

Learning Mode Operation

In Learning Mode, press the button shortly to cycle through 12 major scales:

  • C Major → G Major → D Major → A Major → E Major → B Major
  • F#/Gb Major → Db/C# Major → Ab Major → Eb Major → Bb Major → F Major

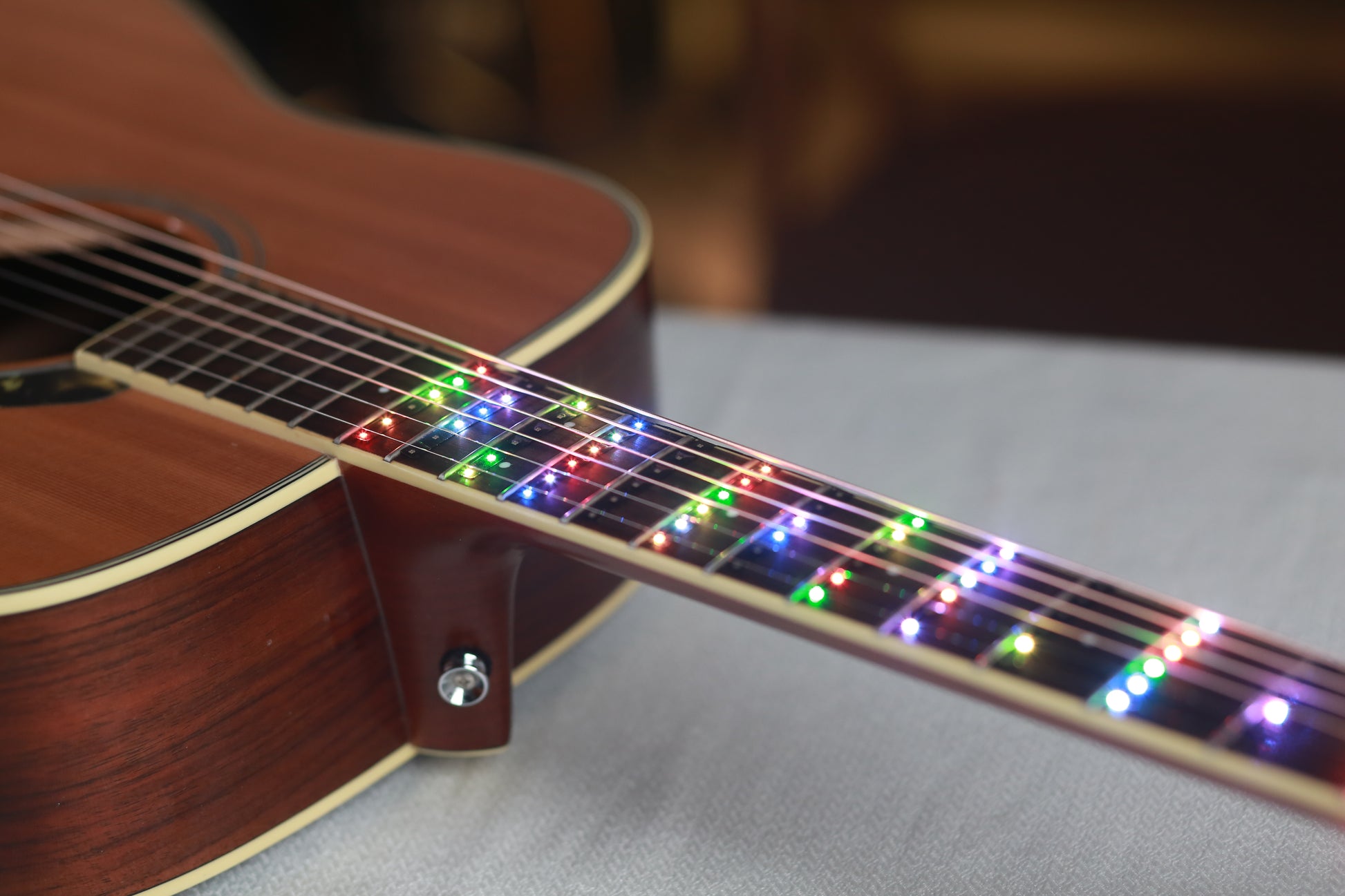

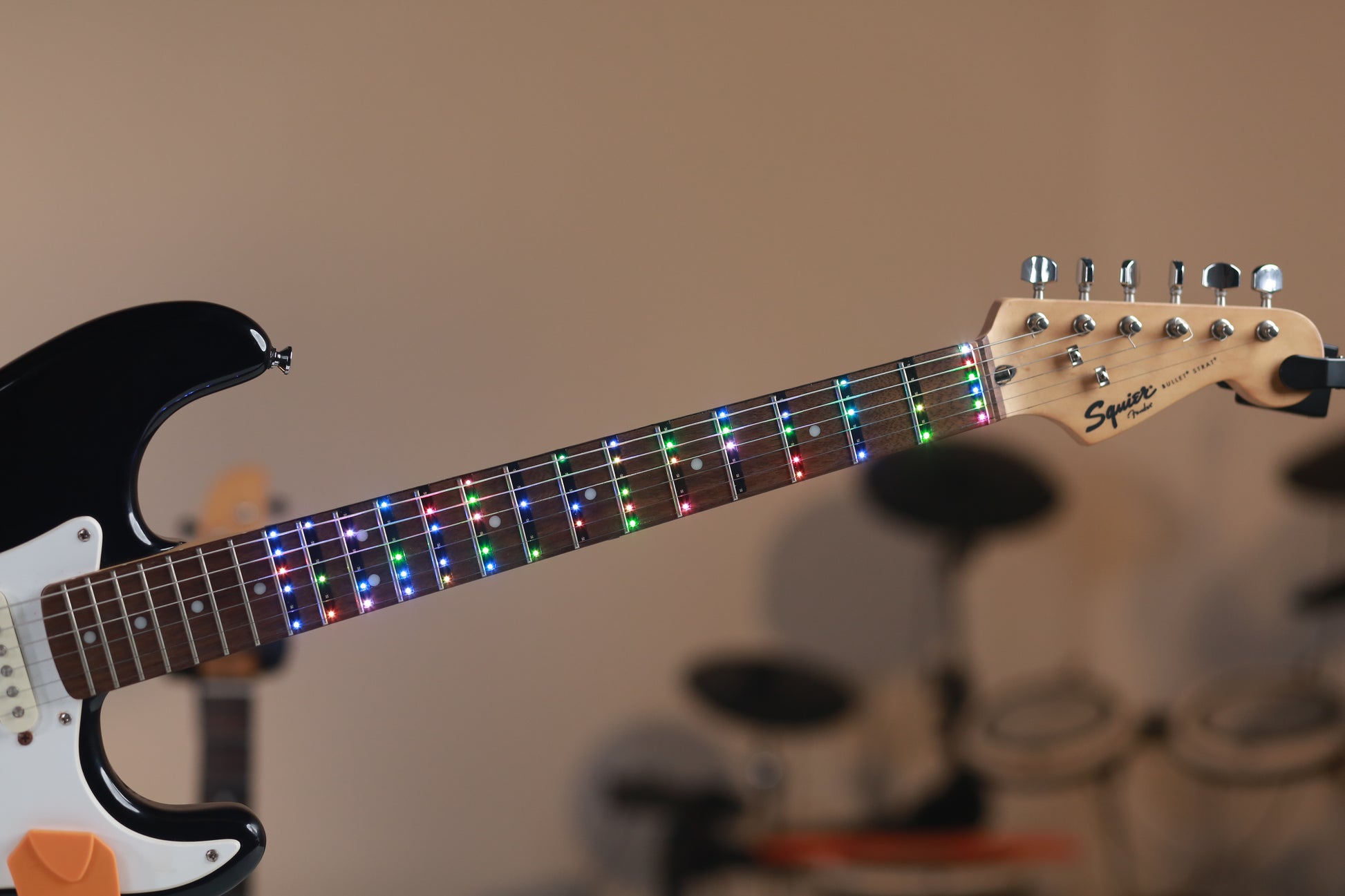

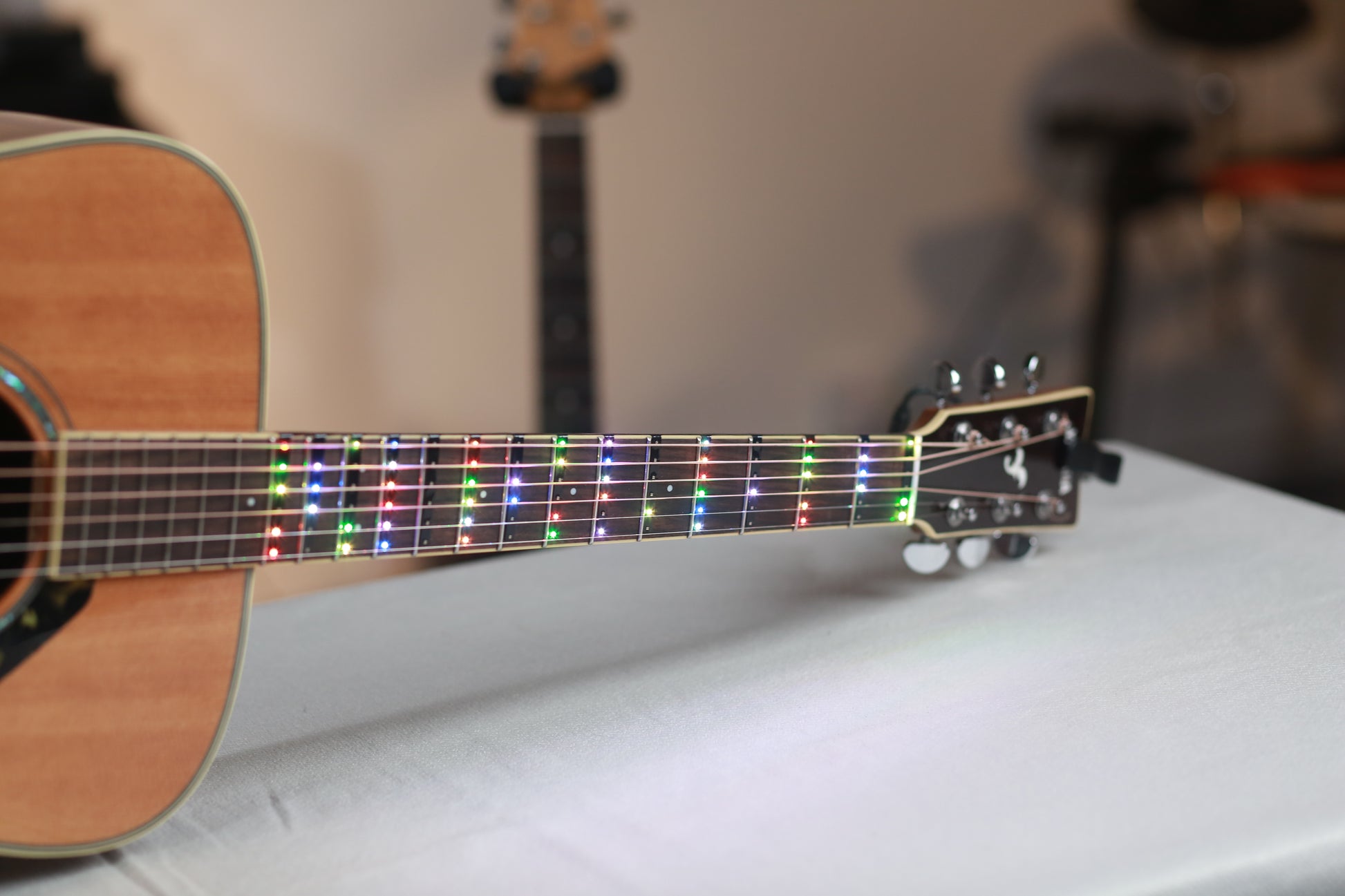

Stage Mode

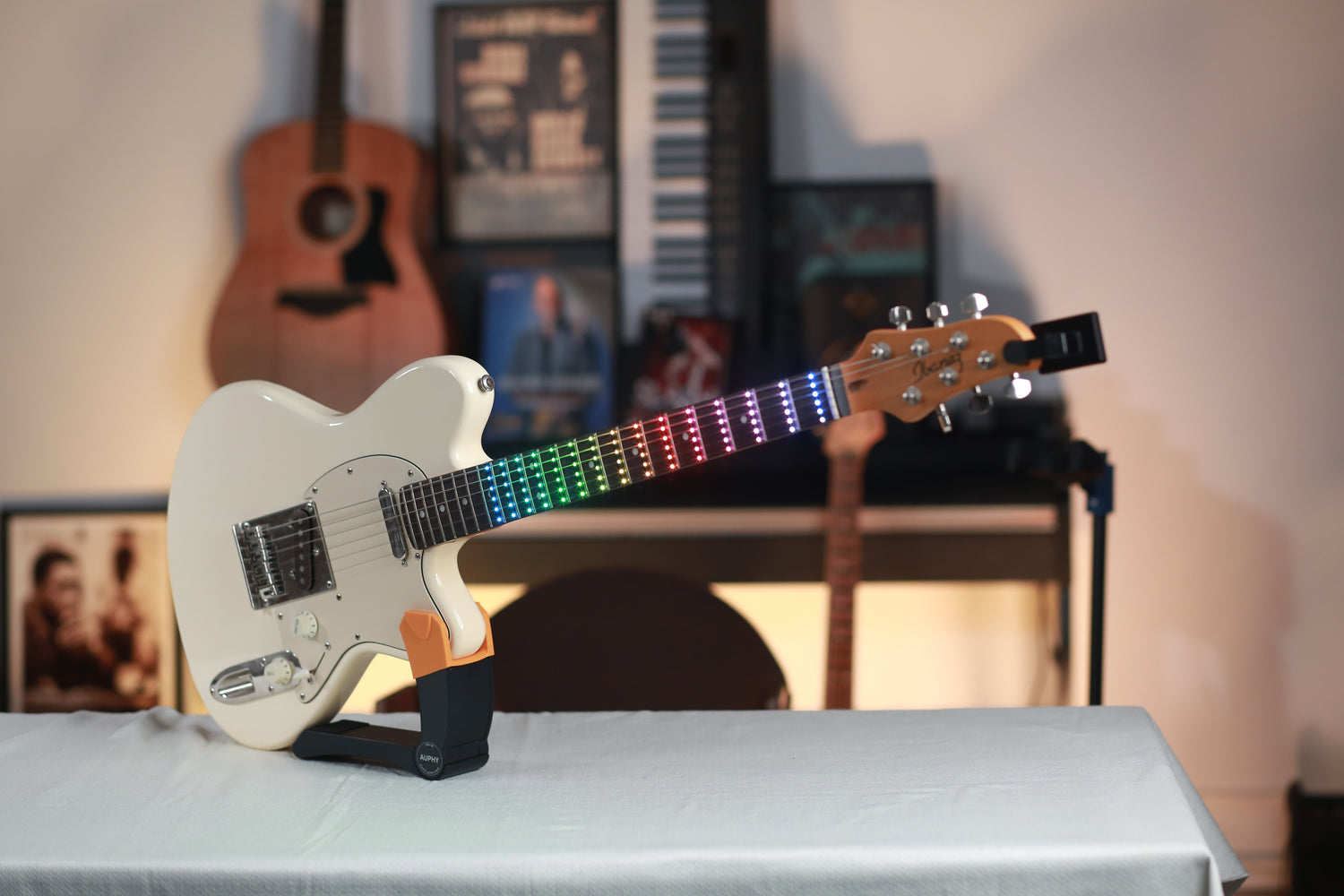

  • 1.Static Full Brightness Mode

    All 90 LEDs light up with different colors per row for stunning visual effects

  • 2.Breathing Light Mode

    All LEDs breathe with a single random color changing rhythmically to create an atmosphere

  • 3.Colorful Mode

    LEDs light up randomly with random colors for dynamic visual effects

  • 4.Strings Mode

    Lights up by column with different colors to simulate the strings effect

  • 5.Navigation Mode

    Lights up the fret markers (3rd, 5th, 7th, 9th, 12th frets)

  • 6.Rhythm Mode

    LEDs flash according to the volume and rhythm of playing, with dynamic brightness and range

Learning Mode

  • 12 Major Scales Learning

    Covers the positions of 12 natural major scales on the guitar

  • Scale Color System（1）

    All LEDs breathe with a single random color changing rhythmically to create an atmosphere

  • Scale Color System（2）

    Root (I); Second (II); Third (III);

    Fourth (IV); Fifth (V); Sixth (VI);

    Seventh (VII);

  • Mode Selection（1）

    • C Major Mode (C, D, E, F, G, A, B)
    • G Major Mode (G, A, B, C, D, E, F#)
    • D Major Mode (D, E, F#, G, A, B, C#)
    • A Major Mode (A, B, C#, D, E, F#, G#)

  • Mode Selection（2）

    • E Major Mode (E, F#, G#, A, B, C#, D#)
    • B Major Mode (B, C#, D#, E, F#, G#, A#)
    • F#/Gb Major Mode (F#, G#, A#, B, C#, D#, E#)
    • Db/C# Major Mode (Db, Eb, F, Gb, Ab, Bb, C)

  • Mode Selection（3）

    • Ab Major Mode (Ab, Bb, C, Db, Eb, F, G)
    • Eb Major Mode (Eb, F, G, Ab, Bb, C, D)
    • Bb Major Mode (Bb, C, D, Eb, F, G, A)
    • F Major Mode (F, G, A, Bb, C, D, E)

PLAY WITH LIGHT

Learning guitar doesn't have to be tedious. The lighting effects can better complement the performance.
