AUPHY Guitar Fretboard Light
Light up your musical journey, your smart learning companion
Product Specifications
- Size: 1.1mm × 1.1mm × 0.35mm
- Quantity: 90 LEDs (6 strings × 15 frets)
- Type: RGB LED with independent IC
- Lifespan: 2 years
- Colors: 7 dedicated colors for musical scales
- Material: Rolled copper (red copper)
- Surface treatment: Silicone spray coating
- Thickness: 0.6mm
- Adhesive: 3M high-viscosity adhesive
- Color: Black
- Battery: 900Am rechargeable aluminum battery
- Battery life: Approximately 4 hours when fully charged
- Controller: Headstock clip design
- Size: 25.5"(648mm) / 24.75"(628mm)
- Connection cable: 70mm dedicated cable
Lighting Modes
Stage Mode
-

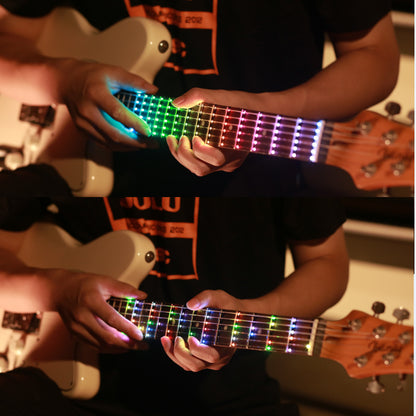

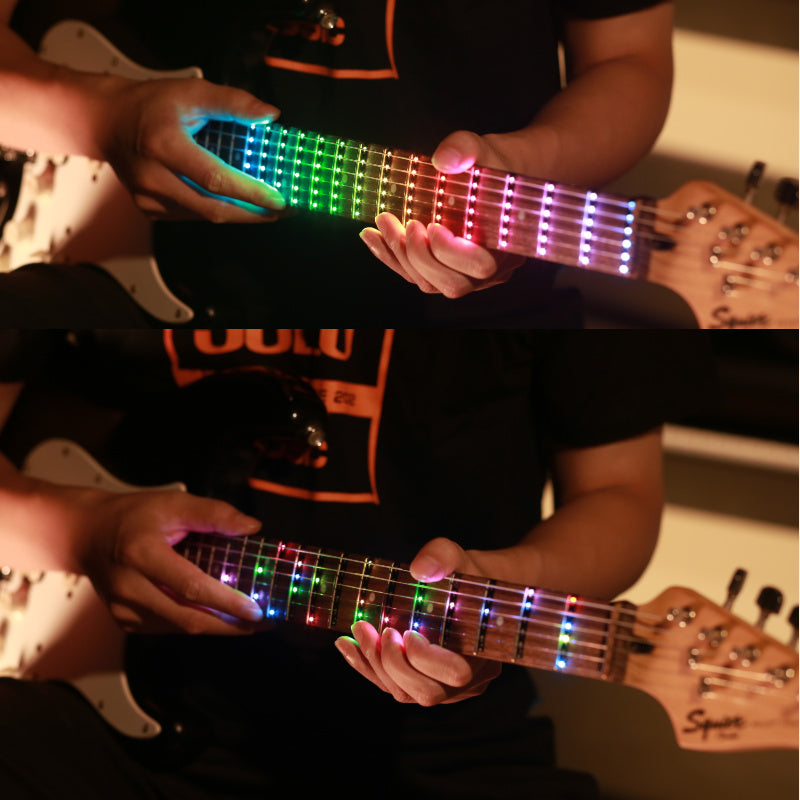

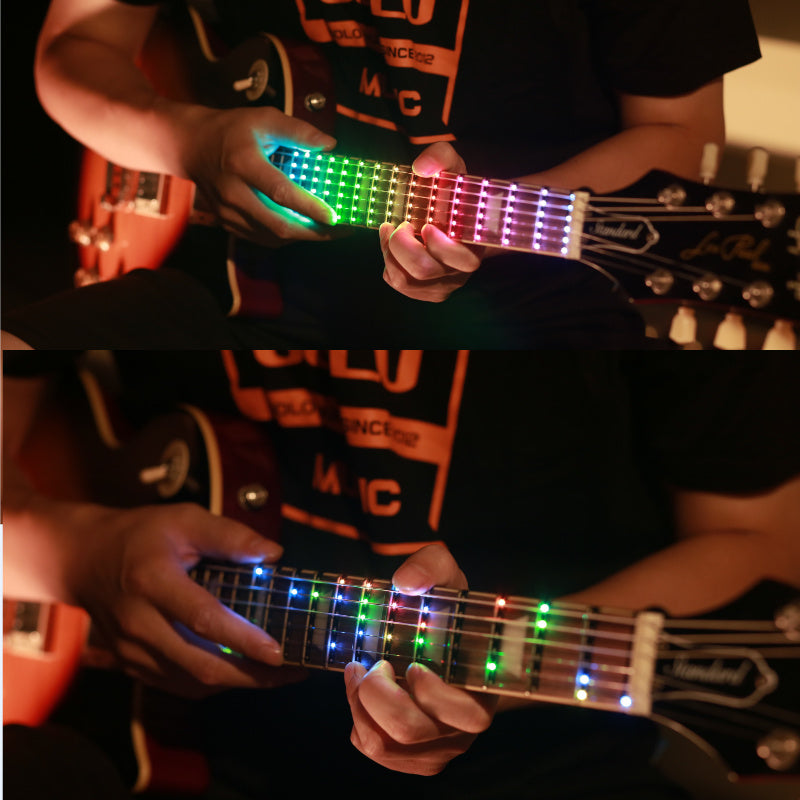

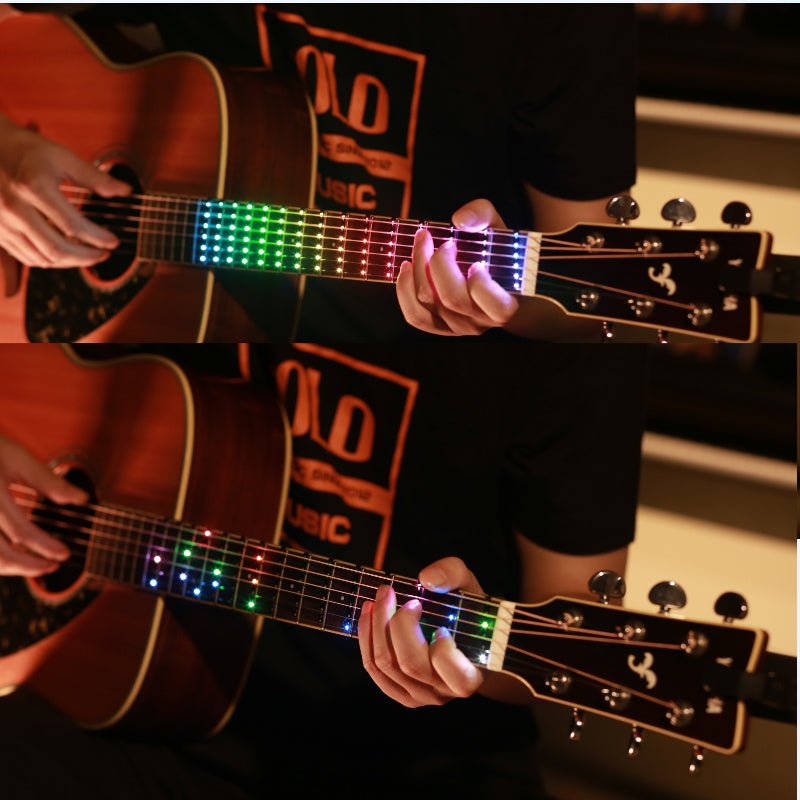

1.Static Full Brightness Mode

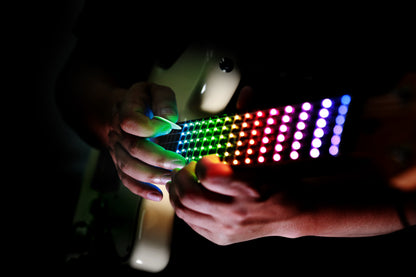

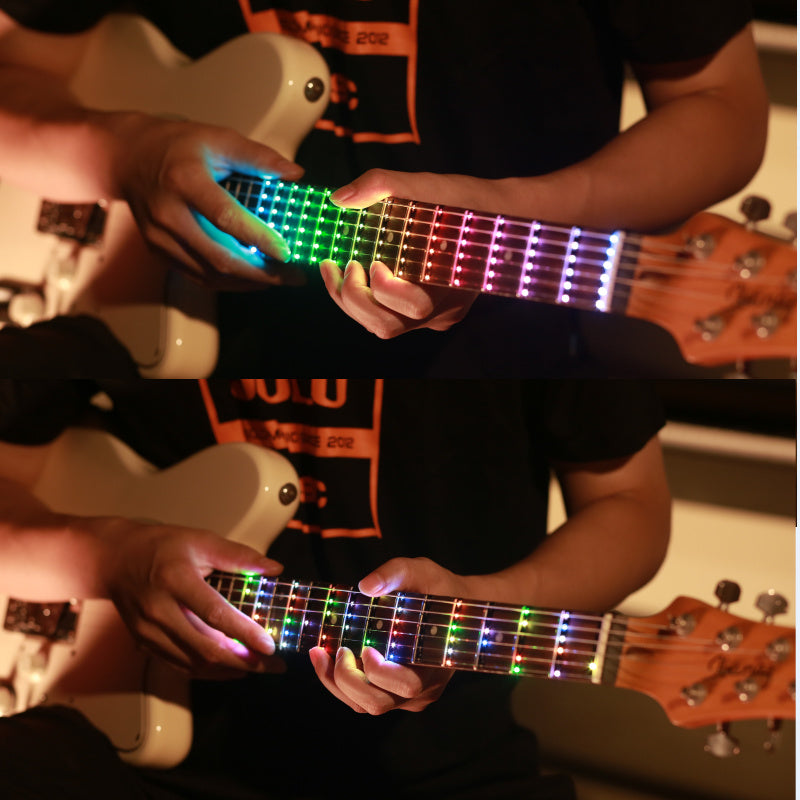

All 90 LEDs light up with different colors per row for stunning visual effects
-
2.Breathing Light Mode
All LEDs breathe with a single random color changing rhythmically to create an atmosphere
-
3.Colorful Mode
LEDs light up randomly with random colors for dynamic visual effects
-
4.Strings Mode
Lights up by column with different colors to simulate the strings effect
-
5.Navigation Mode

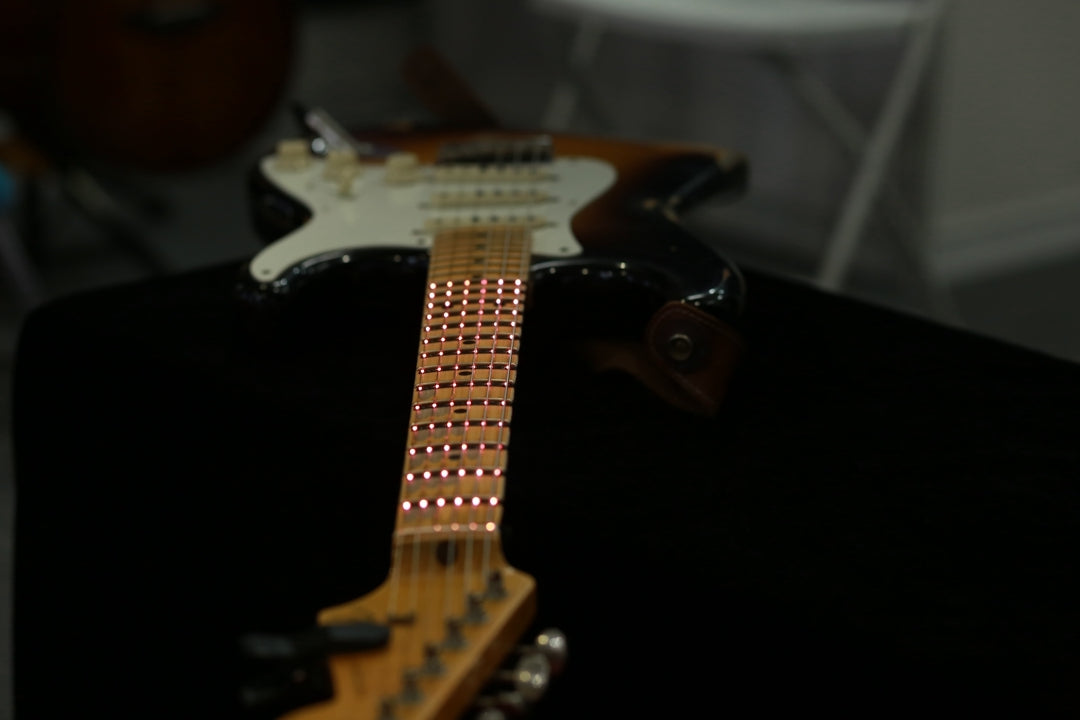

Lights up the fret markers (3rd, 5th, 7th, 9th, 12th frets)
-
6.Rhythm Mode
LEDs flash according to the volume and rhythm of playing, with dynamic brightness and range
Learning Mode
-
12 Major Scales Learning
Covers the positions of 12 natural major scales on the guitar
-
Scale Color System
All LEDs breathe with a single random color changing rhythmically to create an atmosphere
-
Scale Color System
Root (I); Second (II); Third (III);
Fourth (IV); Fifth (V); Sixth (VI);
Seventh (VII);
-
Mode Selection（1）
- C Major Mode (C, D, E, F, G, A, B)
- G Major Mode (G, A, B, C, D, E, F#)
- D Major Mode (D, E, F#, G, A, B, C#)
- A Major Mode (A, B, C#, D, E, F#, G#)
-
Mode Selection（2）
- E Major Mode (E, F#, G#, A, B, C#, D#)
- B Major Mode (B, C#, D#, E, F#, G#, A#)
- F#/Gb Major Mode (F#, G#, A#, B, C#, D#, E#)
- Db/C# Major Mode (Db, Eb, F, Gb, Ab, Bb, C)
-
Mode Selection（3）
- Ab Major Mode (Ab, Bb, C, Db, Eb, F, G)
- Eb Major Mode (Eb, F, G, Ab, Bb, C, D)
- Bb Major Mode (Bb, C, D, Eb, F, G, A)
- F Major Mode (F, G, A, Bb, C, D, E)
Installation Guide
Preparation
Loosen the guitar strings, thoroughly clean the fretboard surface to ensure it is free of dust and grease
Apply the Fretboard Light

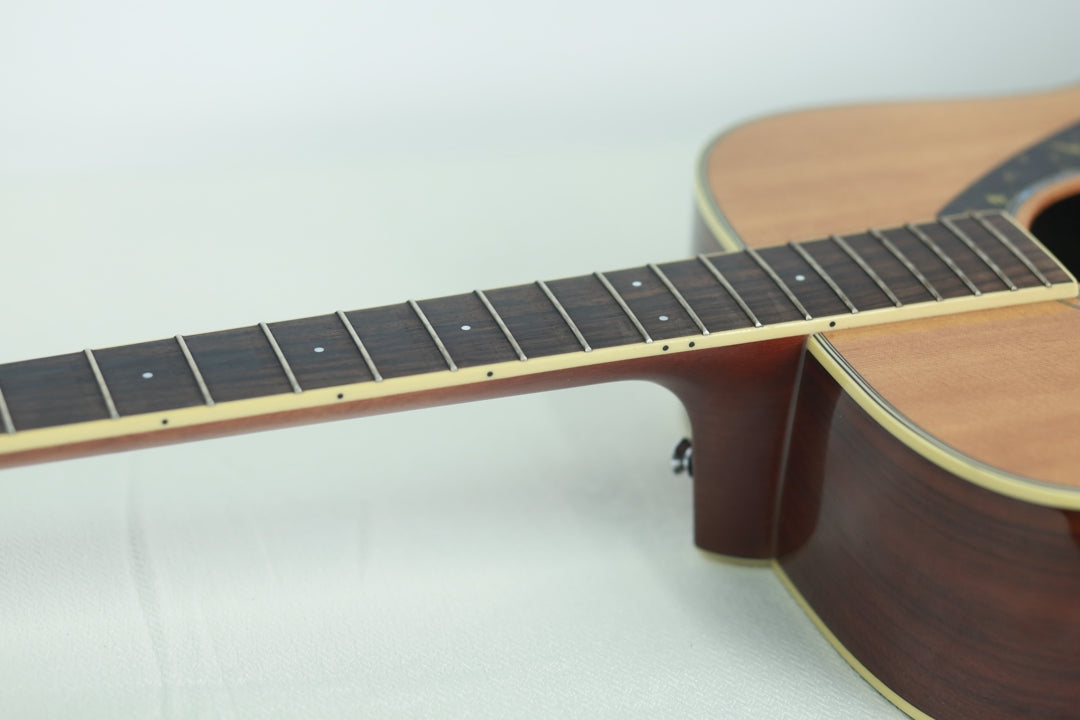

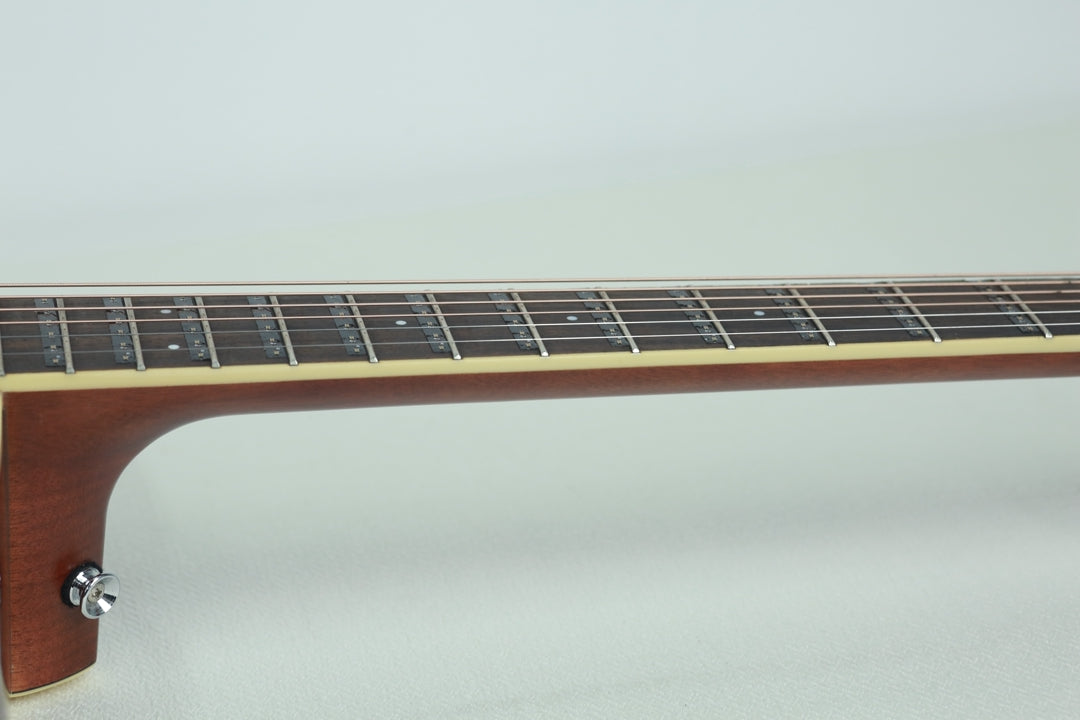

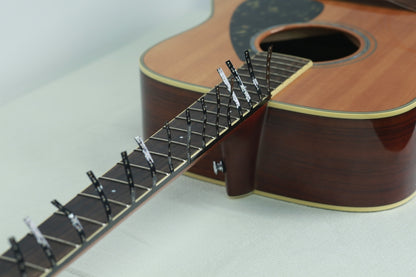

Peel off the adhesive backing of the fretboard light strip, align the first row of LEDs with the guitar nut, the second row with the first fret, and so on up to the 14th fret
Fix the Bracket
Attach the included small bracket to the back of the guitar headstock, and clip the connector of the fretboard light to the bracket
Install the Controller
Clip the controller to the guitar headstock, ensuring it is secure and not loose
Connect the Device
Use the included 70mm connection cable to connect the guitar fretboard light strip to the controller
Operation Instructions
Power On/Off
Press and hold the controller button for 3 seconds to turn on/off. It defaults to Stage Mode when powered on
Mode Switching
Double-click the controller button to switch between Stage Mode and Learning Mode
Stage Mode Operation
In Stage Mode, press the button shortly to cycle through 6 lighting effects:
- Static Full Brightness Mode
- Breathing Light Mode
- Colorful Mode
- Strings Mode
- Navigation Mode
- Rhythm Mode
Learning Mode Operation
In Learning Mode, press the button shortly to cycle through 12 major scales:
- C Major → G Major → D Major → A Major → E Major → B Major
- F#/Gb Major → Db/C# Major → Ab Major → Eb Major → Bb Major → F Major
